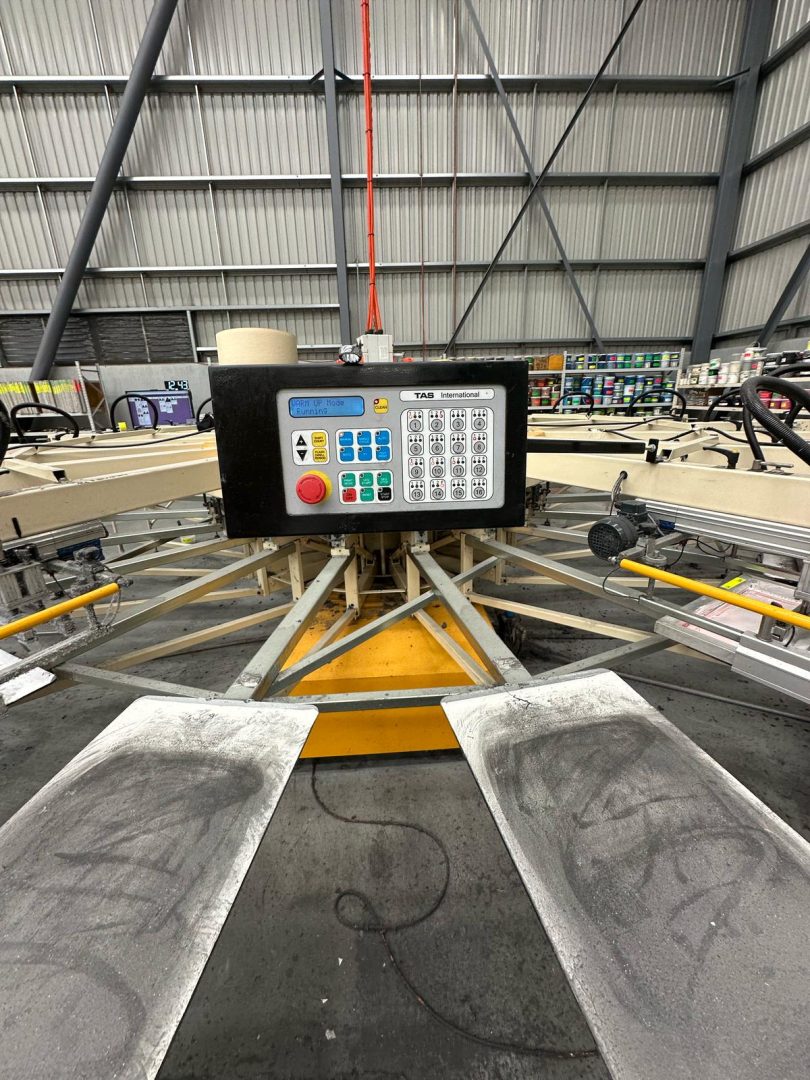

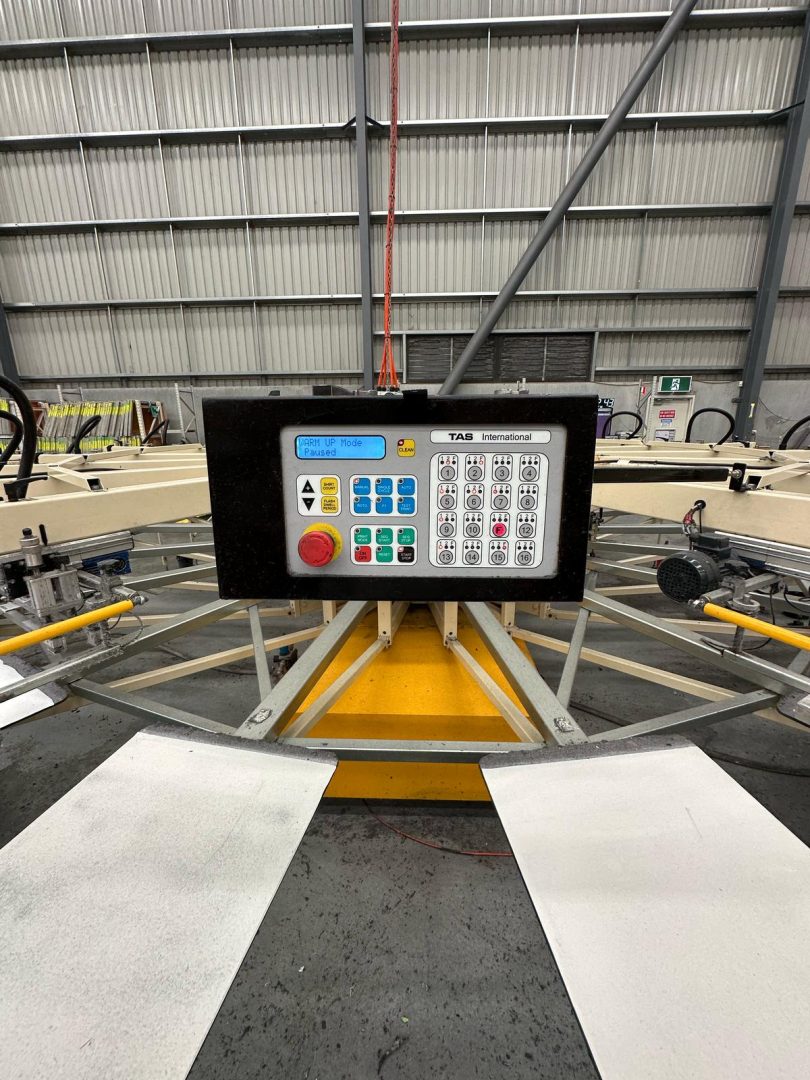

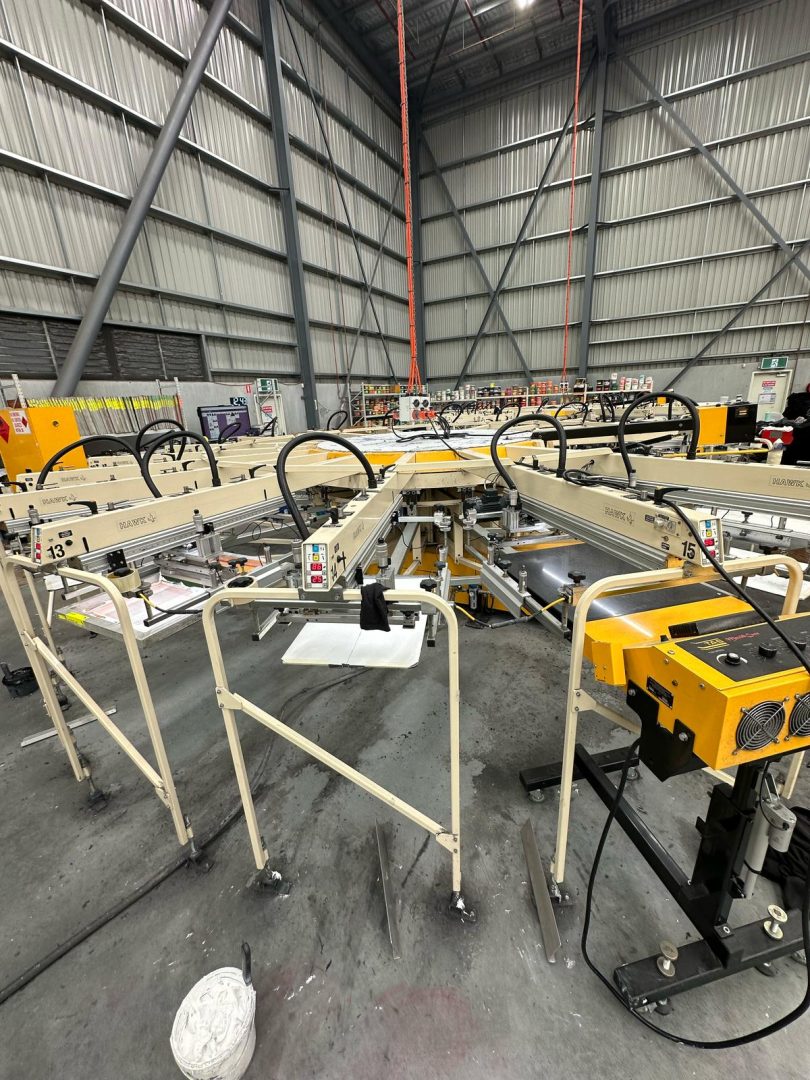

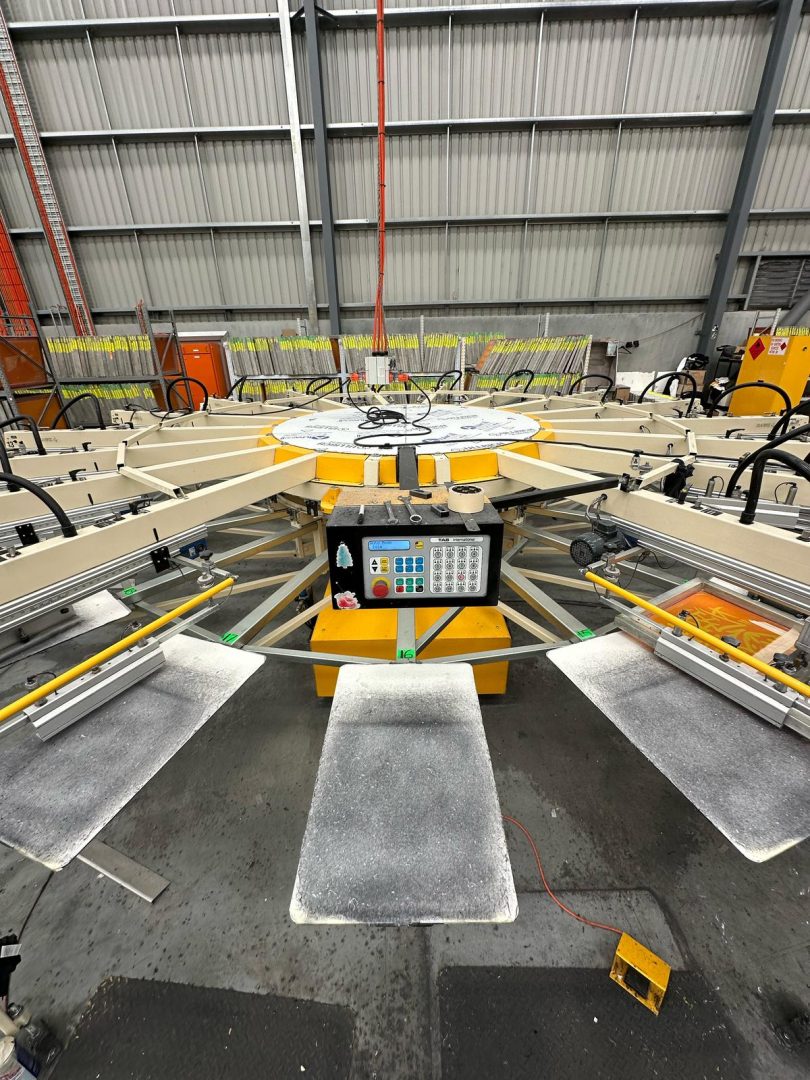

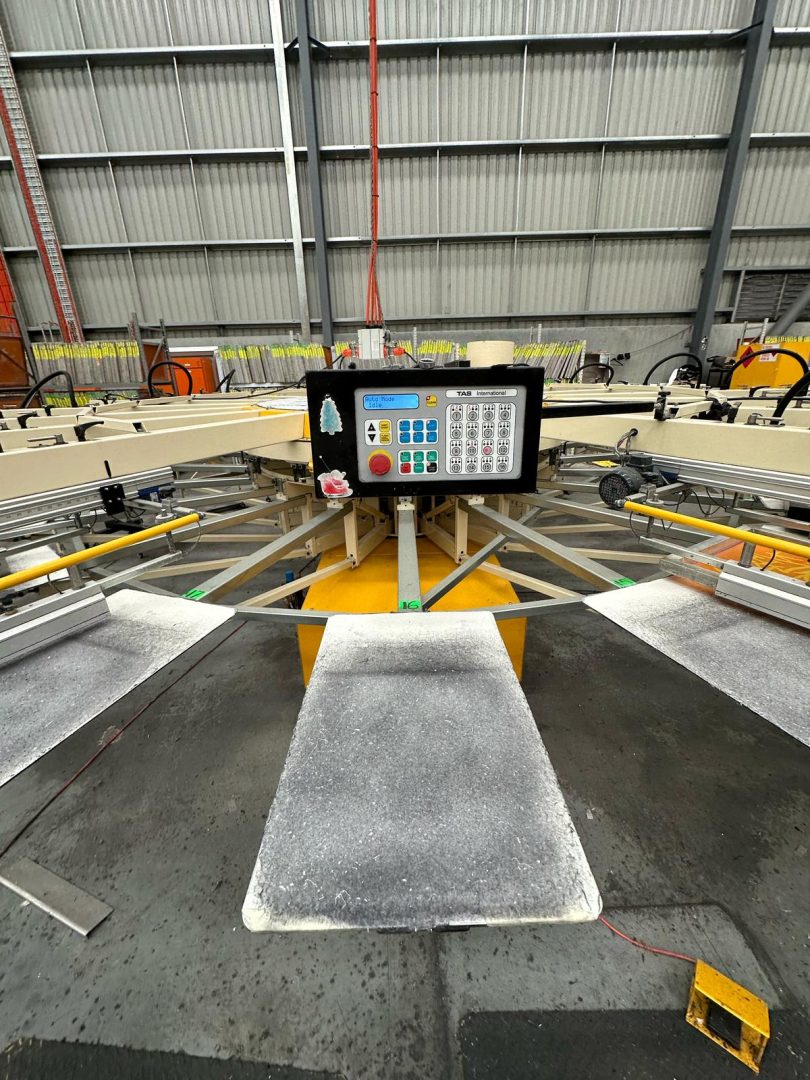

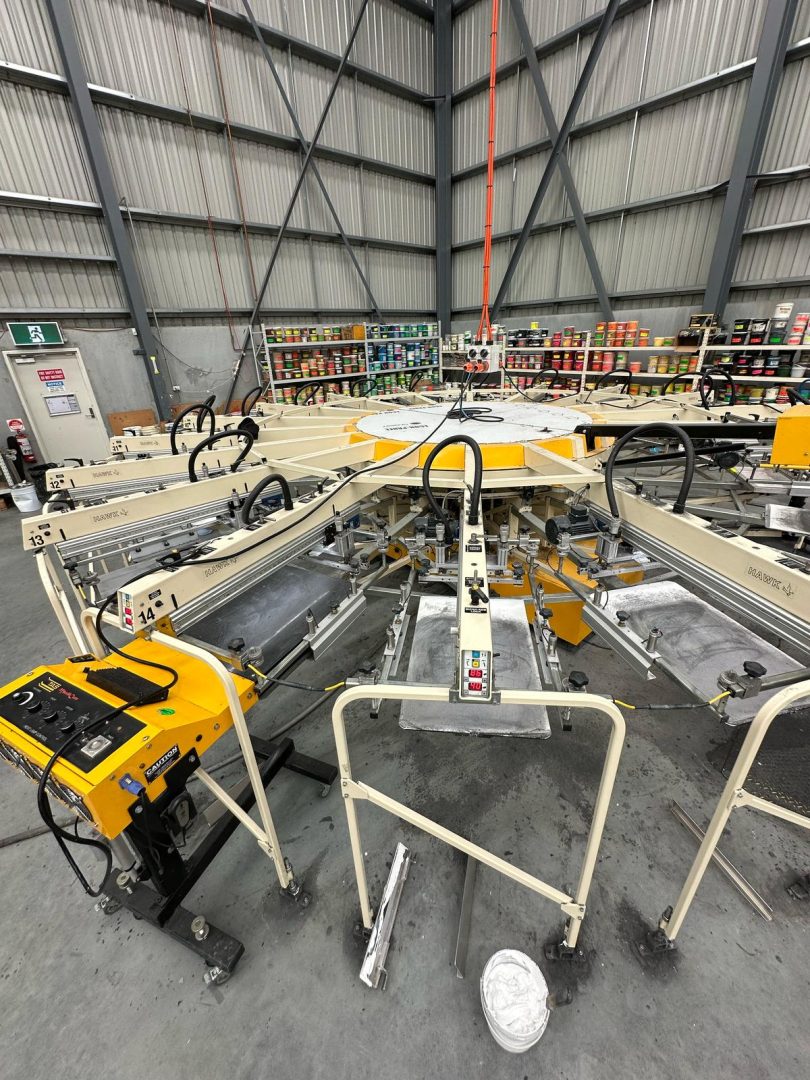

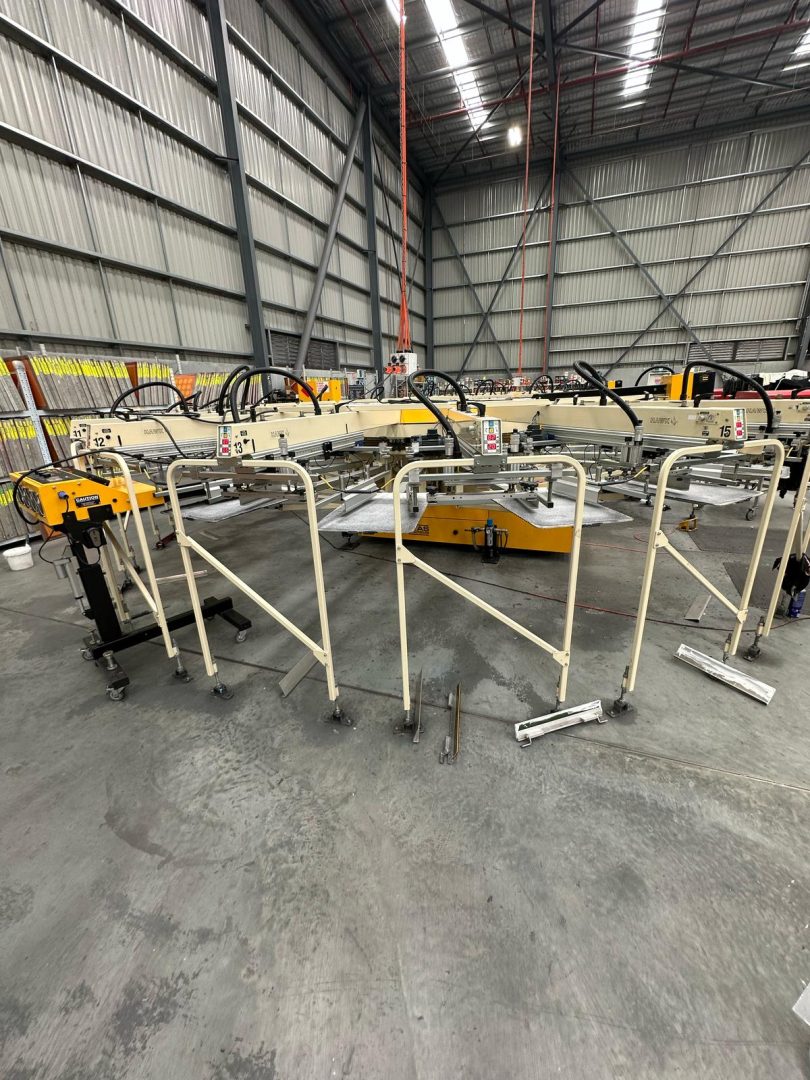

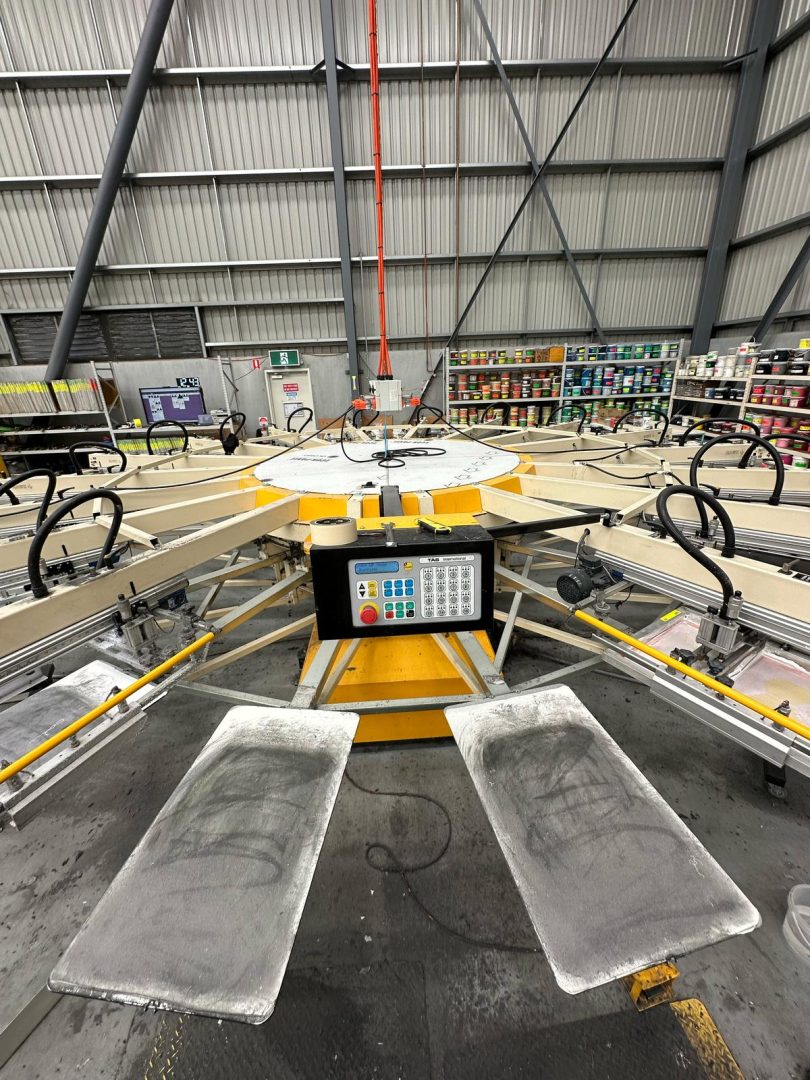

Used TAS Hawk HX16 Automatic Screen Printing Carousel + 2 x TAS Maxi Cure Quartz Flashes units in good working condition.

Specifications:
Colours: 16
Stations: 18
Indexer: Electric
Print Heads: Electric
Max Outside Frame Size: 660mm X 940mm (26″ X 37″)
Max Print Area: 508MM X 635mm (20″ X 25″)
Diameter: 6300

Standard Pallet Size: 470mm X 762mm (18.5″ X 30″)
Standard Squeegees & Flood Bars: 460mm
Standard Squeegee Rubbers: 69 Duro
Electrical Requirements 220v/3Ph: 23amps 50/60hz
Electrical Requirements 380-415v/3Ph: 25amps 50/60hz
Compressed Air Requirement: 10 l/sec 19cfm @ 100 psi

Serial Number:: 1465
0.603 Million Prints

2021 model

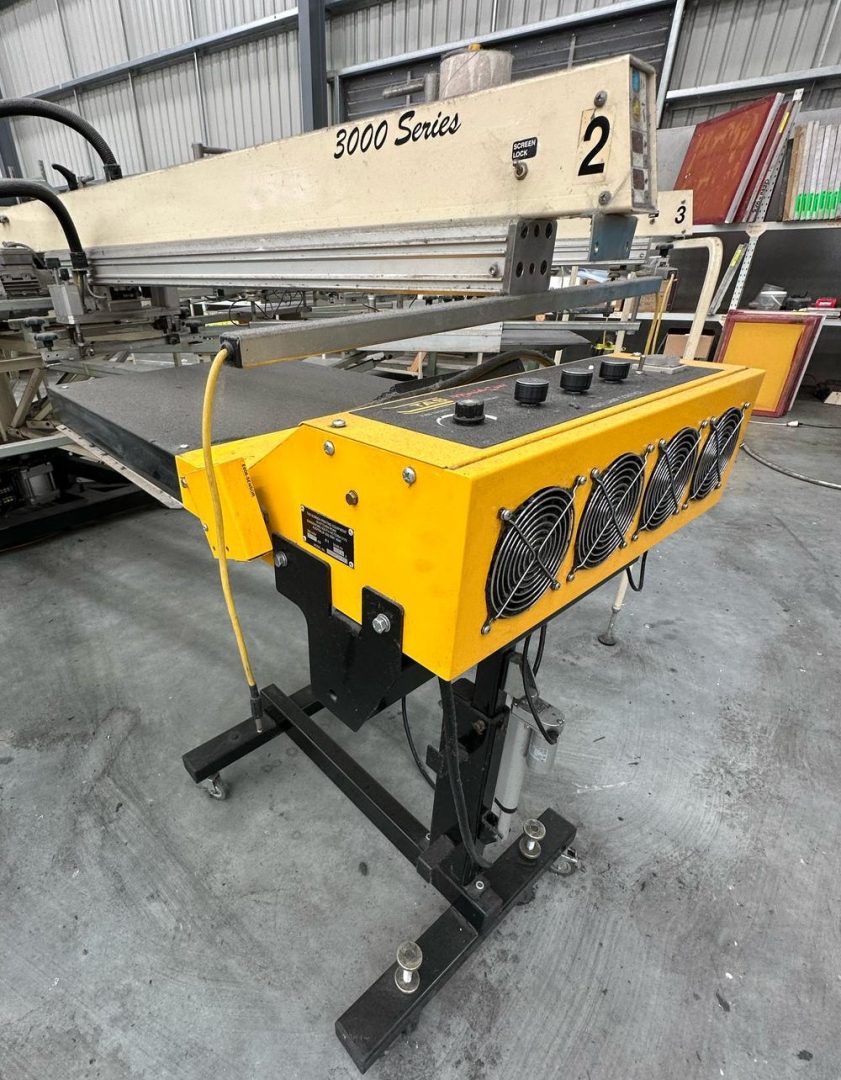

2 x Maxi Cure Flash:5065
Heat area of 500 x 650mm
9 quartz elements provide consistent heat coverage and speed.
Power: 3 phase 20 amps

Located at vendors premises in Sydney
