$29,500.00 + gst

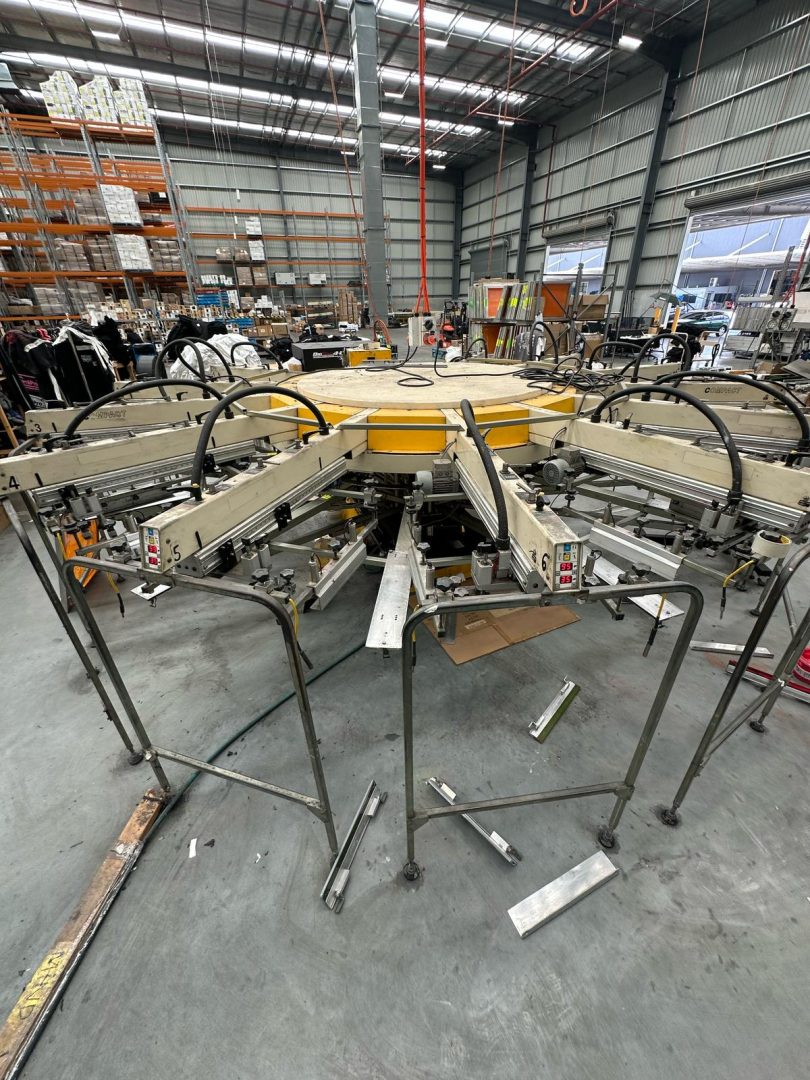

Used TAS Compact CX-12 Automatic Screen Printing Carousel with 1 x TAS Maxi Cure Quartz Flash
Great auto for those who have limited space!
Specifications:
Colours: 12
Stations: 14
Indexer: Electric
Print Heads: Electric
Max Outside Frame Size: 610mm X 762mm (24″ X 30″)
Max Print Area: 457mm X 508mm (18″ X 20″)
Diameter: 4964mm (16′ 3″)
Standard Pallet Size: 470mm X 610mm (18.5″ X 24″)
Standard Squeegees & Flood Bars: 460mm
Standard Squeegee Rubbers: 65 duro
Electrical Requirements 220v/3Ph: 17amps 50/60hz
Electrical Requirements 380-415v/3Ph: 19amps 50/60hz
Compressed Air Requirement: 5.8 l/sec 11 cfm @ 100 psi
Serial Number:: 1246
4.706 Million Prints
2011 model
TAS Maxi Cure Quartz Flash: 4650
Heat area of 460 x 500mm
Power: 3 phase 20 amps
Heat area of 460 x 500mm
9 quartz elements provide consistent heat coverage and speed.
Located at vendors premises in Sydney.
