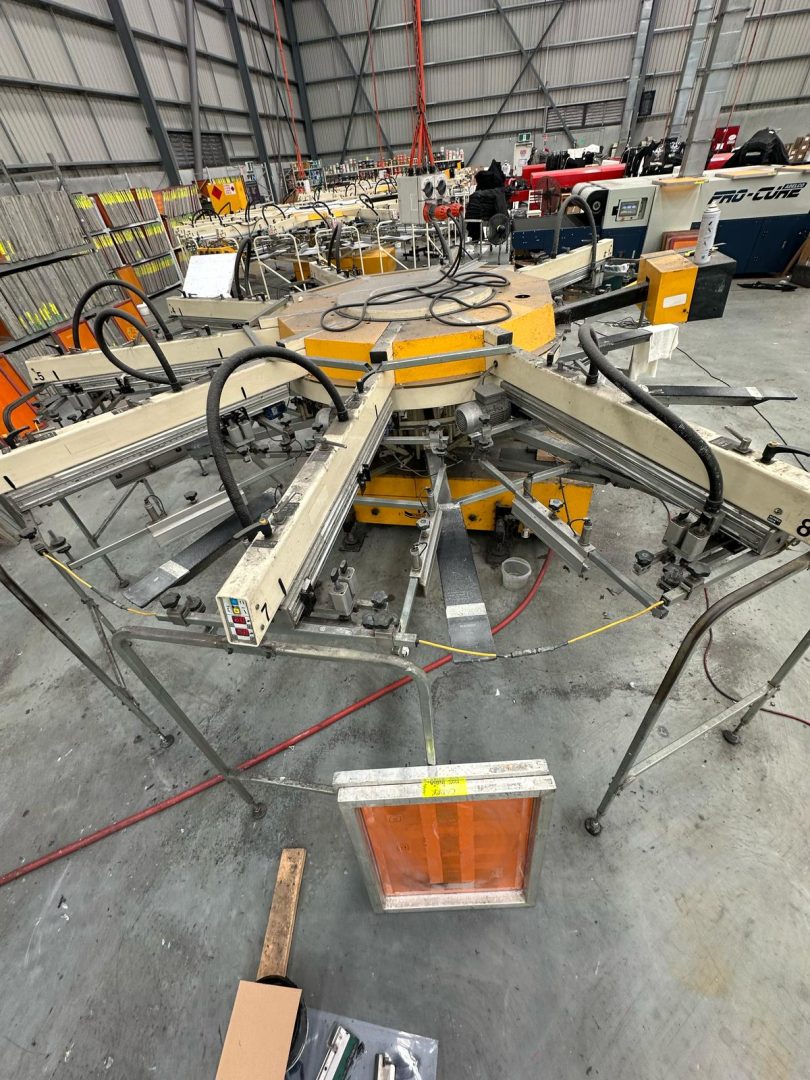

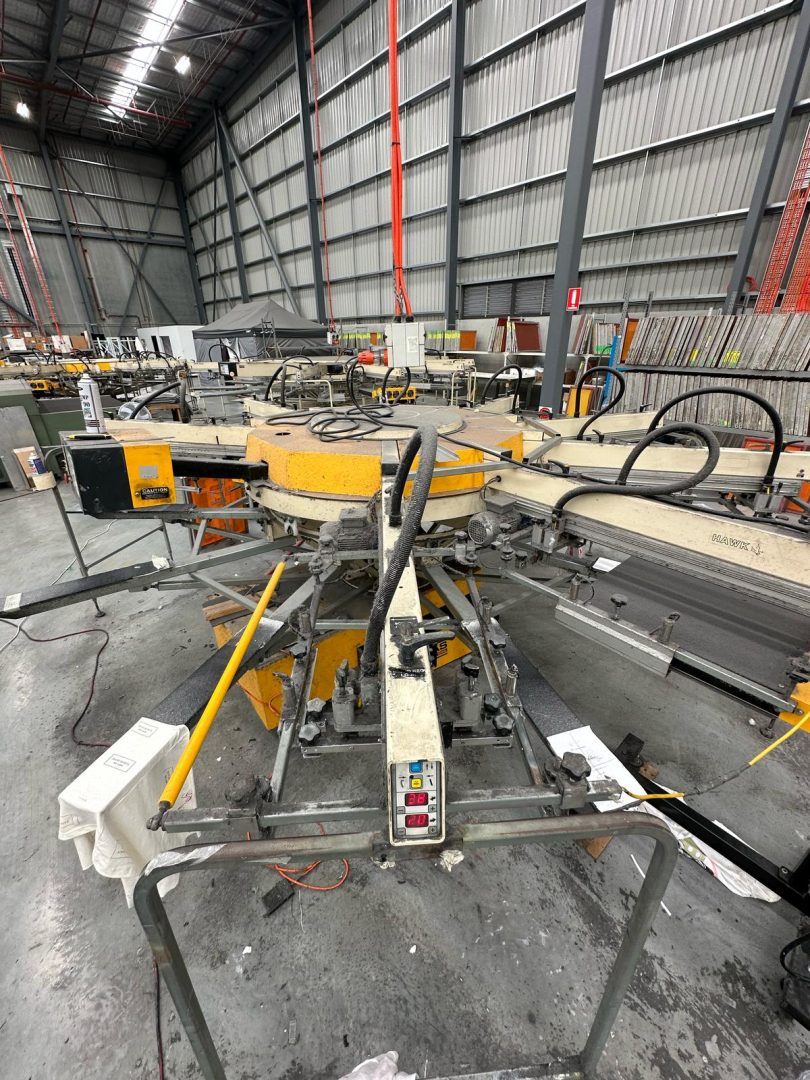

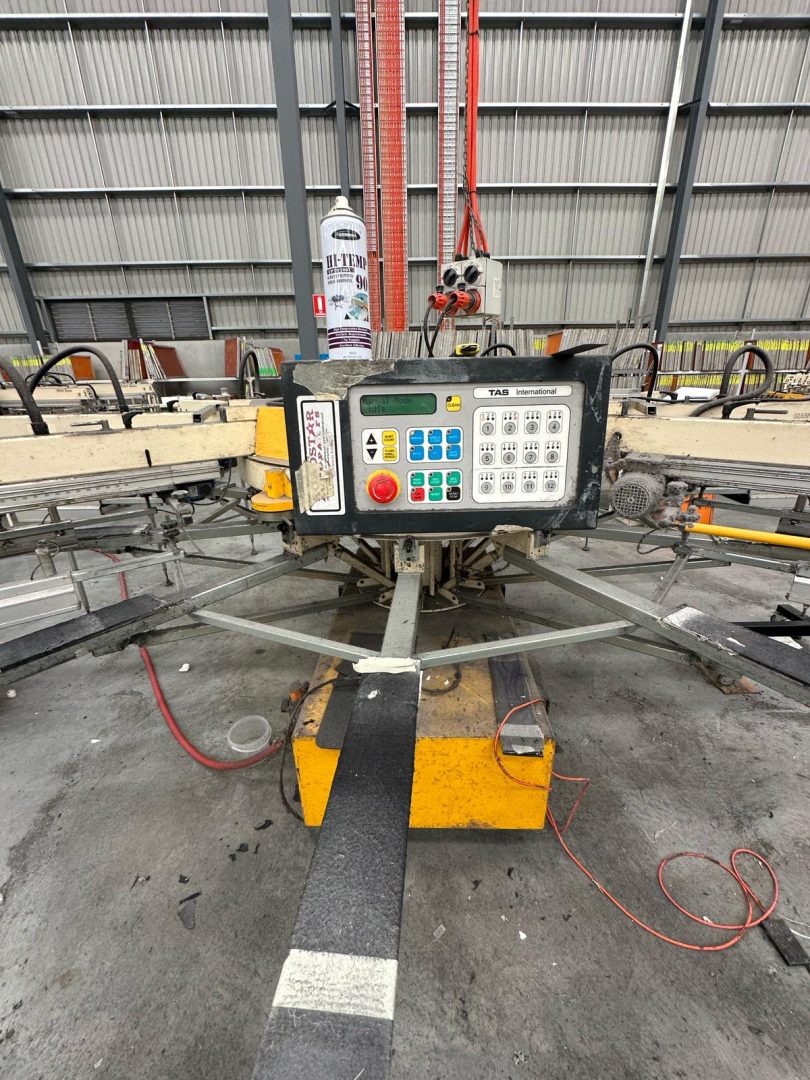

Used TAS Hawk HX-08 Automatic Screen Printing Carousel with 1 x TAS Maxi Flash – R4587

$28,500.00 + gst

Used  TAS Hawk HX-8 Automatic Screen Printing Carousel with 1 x TAS Quartz Maxi flash 5065

In good condition but the safety needs fixing (approx $1000 to repair).

HAWK COMPACT CX Series is the ideal choice where factory space is limited.

Electric Heads

Max Outside Frame Size: 660mm X 940mm (26″ X 37″)
Max Print Area: 508MM X 635mm (20″ X 25″)
Standard Pallet Size: 470mm X 762mm (18.5″ X 30″)
Standard Squeegees & Flood Bars: 460mm
Standard Squeegee Rubbers: 65 duro

Diameter: 4502mm (14′ 9″)

Electrical Requirements 380-415v/3Ph: 15amps 50/60hz
Compressed Air Requirement: 4.5 l/sec 10cfm @ 100 psi

Serial Number: 1314
3.105 Million prints

Year built: 2014

Comes with: 760mm pallets

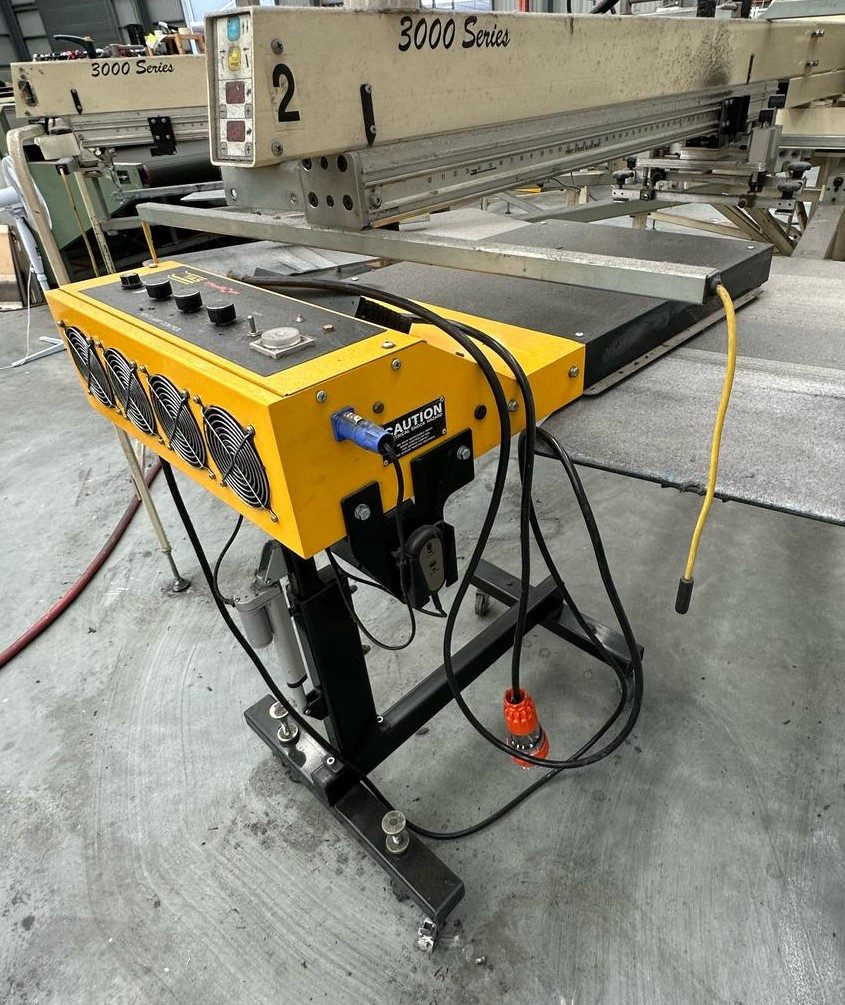

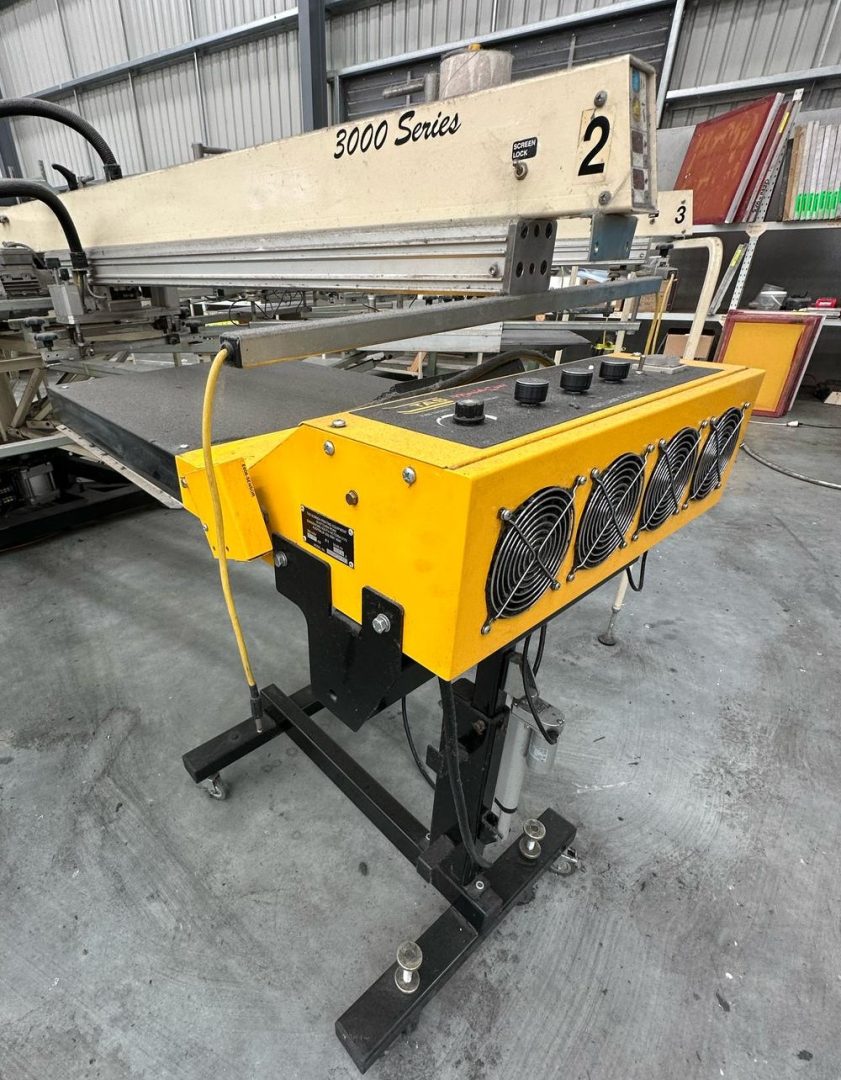

Maxi Cure Quartz Flash:5065
Heat area of 500 x 650mm
Power: 3 phase 20 amps

Brochure: www.tasinternational.com.au/cms/uploads/TAS-Screen-Printing-Machines-Brochure-2019-261.pdf

Located at vendors premises in Sydney.
