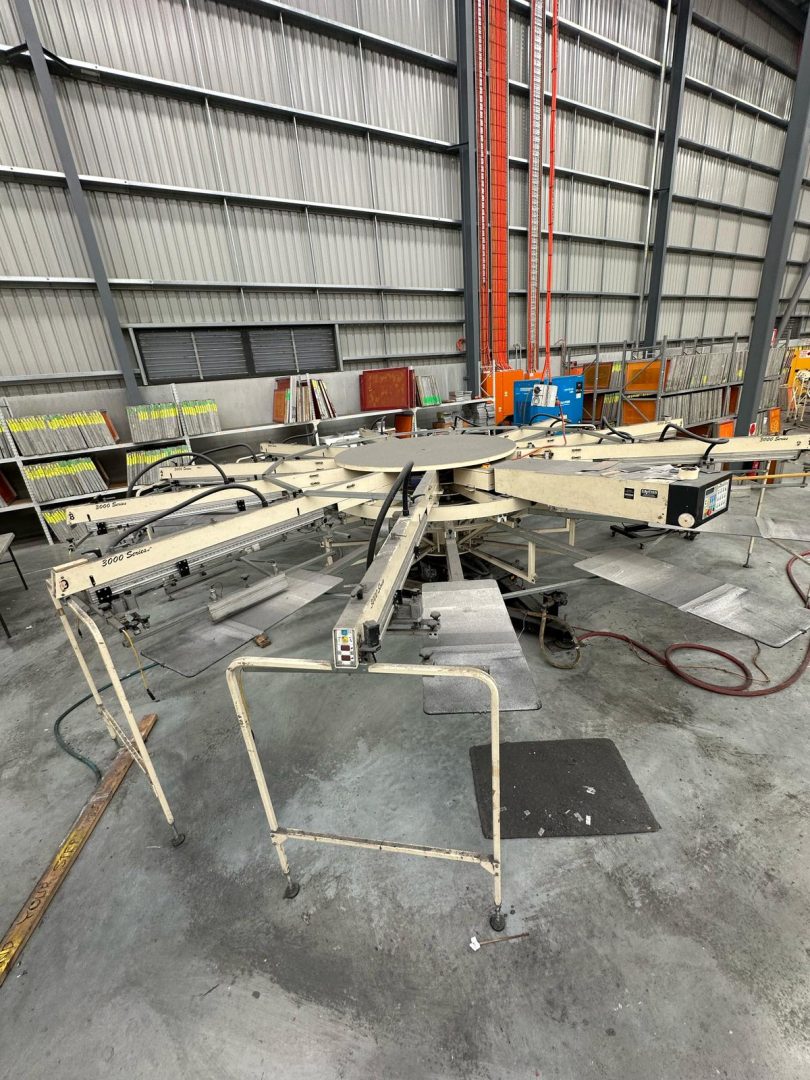

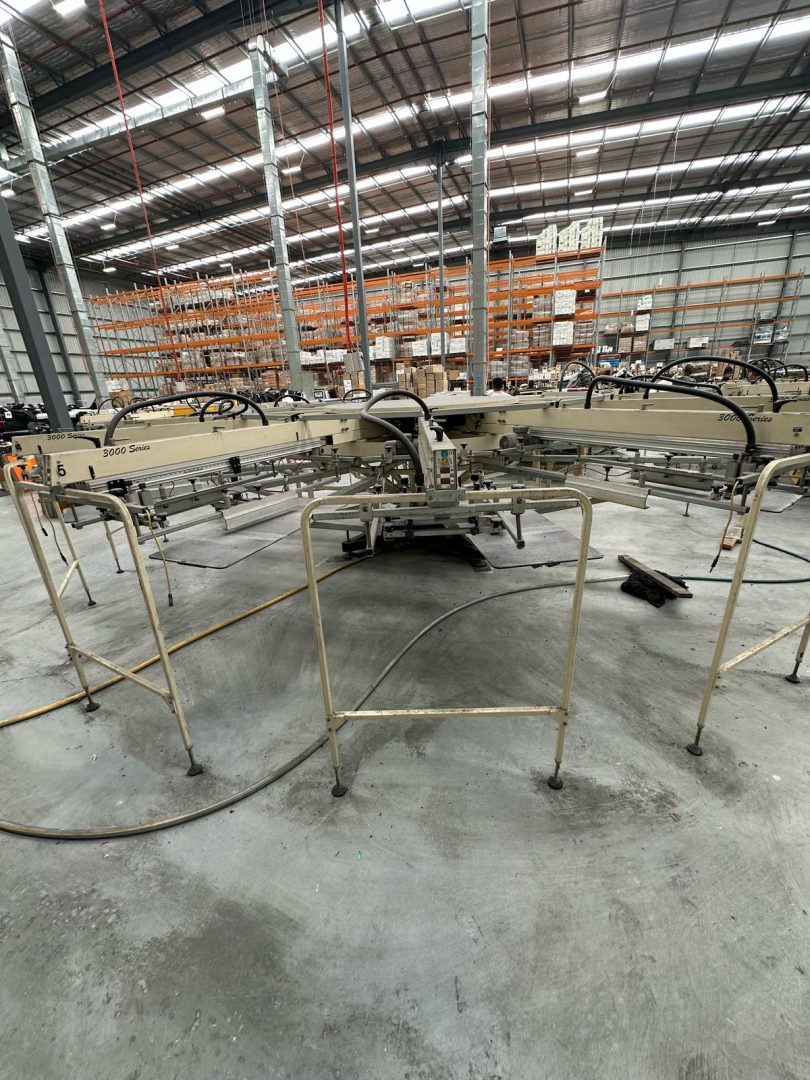

Used TAS 3000 Series 3X10 Automatic Screen Printing Carousel – R4588

Used TAS 3000 Series 3X10 Automatic Screen Printing Carousel in good working condition.

New safety beam needs fitting

Enormous maximum print area of up to 71cm x 105cm (28” x 41”)
This machine is able to print all-over garments in up to 10 colours.

Specifications:
Colours: 10
Stations: 12
Indexer: Electric
Print Heads: Electric
Max Outside Frame Size: 865mm X 1430mm (34″ X 56.5″)
Max Print Area: 711mm X 1055mm (28″ X 41.5″)
Diameter: 6575mm (21′ 6″)
Weight: 3300Kg (7275lb)
Standard Pallet Size: 610mm X 1120mm (24″ X 44″)
Standard Squeegees & Flood Bars: 600mm
Standard Squeegee Rubbers: 65 duro
Electrical Requirements 220v/3Ph: 31amps 50/60hz 50/60hz
Electrical Requirements 380-415v/3Ph: 42amps 50/60hz
Compressed Air Requirement: 7.5 l/sec 16 cfm @ 100 psi

Serial Number: 1119
1.755 Million Prints

2008 model

Located at vendors premises in Sydney.
