Vastex V-1000 Pallets and Accessories

Enhance the performance of your Vastex  V-1000 T Shirt Carousel with additional Pallets and accessories to make your screen printing easier.

All Vastex V-1000 Pallets are made from a  high strength steel construction, ensuring they never warp.  In addition to this, they come with a 25 Year Non-warping Pallet Warranty.

Each pallet comes with a quick release and side ruler to make locating easier, along with a neck guide to help you with garment positioning.

The Vastex Pallets offer a 4-bolt adjustable, pallet arm (included w/ pallet) with a heat and solvent resistant rubber top which is replaceable.

View a range of the Vastex V-1000 Pallets and Accessories below and contact us for custom requirements.

SHIRT PALLETS

V1P-1311: 13″ x 11.5″ (33 x 29 cm)

V1P-1414: 14″ x 14″ (36 x 36 cm)

V1P-1517 – Standard: 15″ x 17″ (38 x 43 cm)

V1P-1017 – Junior: 10.5″ x 17″ (27 x 43 cm)

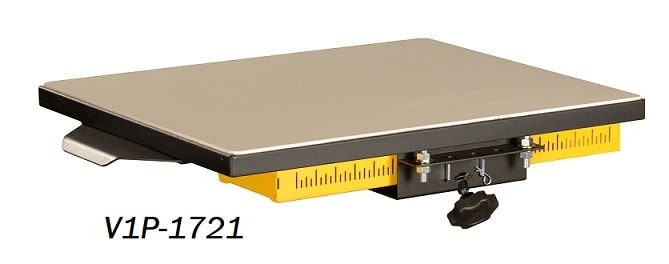

V1P-1721 – Oversized: 17″ x 21″ (43 x 53 cm)

V1P-2024 – Jumbo: 20″ x 24″ (51 x 61 cm)

MINI PALLETS – ideal to print on hoodies, aprons, bandanas, towels, mesh shorts and other smaller materials.

Mini Screen Printing Pallet

V1PM-66: 6″ x 6″ (15 x 15 cm)

V1PM-98: 9″ x 8″ (23 x 20 cm)

LONG SLEEVE PALLETS

V1P-SLS419: 4″ x 19″ (10 x 48 cm)

V1P-SLS519: 5″ x 19″ (13 x 48 cm)

V1P-SLS619: 6″ x 19″ (15 x 48 cm)

SHORT LEG & SLEEVE PALLET – The printing surface extends pas the mounting point making these pallets ideal for short sleeve, legs, towels, beanies along with infant and toddler clothing.

V1P-SS39: 3″ x 9″ (8 x 23 cm)

V1P-SS49: 4″ x 9″ (10 x 23 cm)

V1P-SS59: 5″ x 9″ (13 x 23 cm)

V1P-LEG69: 6″ x 9″ (15 x 23 cm)

SINGLE LEG PALLET

V1P-LEG524: 5″ x 24″ (13 x 66 cm)

V1P-LEG624: 6″ x 24″ (15 x 66 cm)

DOUBLE LONG SLEEVE PALLET – print two sleeves with only one stroke to increase your production.

V1P-DLS419: (2) 4″ x 19″ (10 x 48 cm)

V1P-DLS519: (2) 5″ x 19″ (13 x 48 cm)

UNIVERSAL ATTACHMENTS

V1P-PSA – Polo Attachment: 6.5″ x 5″ (17 x 13 cm)

V1P-PA -Pocket Attachment: 3.875″ x 4″ (9.8 x 10 cm)

V1P-APA – Above Pocket Attachment: 3″ x 5″ (8 x 13 cm)

WING PALLET

V1P-WG2118: 21″ x 18″ (53 x 46 cm)

V1P-WG2127: 21″ x 27″ (53 x 69 cm)

KOOZIE PALLET

V1P-KOOZIE-4UP Print four stubby holders (Koozies) at once with this attachment.

QUICK STRETCH ATTACHMENTS – used when printing lined garments where your spray adhesive cannot be used. These attachments fit around existing Vastex pallets and do not include the pallet.

VQS-66: 6″ x 6″ (15 x 15 cm)

VQS-417: 4″ x 17″ (10 x 43 cm)

VQS-98: 9″ x 8″ (23 x 20 cm)

VQS-1017: 10.5″ x 17″ (27 x 43 cm)

VQS-1517: 15″ x 17″ (38 x 43 cm)

VQS-1721: 17″ x 21″ (43 x 53 cm)

UMBRELLA PALLET – with a hinged quick stretch, this pallet makes loading an umbrella much easier. The quick stretch can sit in a raised position.

V1P-UMB with VQS-UMB 7.25″ x 16.375″ x 11″ (18.4 x 41.6 x 27.9 cm)

ZIPPER ATTACHMENT – ideal for zippers and seams. They can be positions so that the zipper lies between and you can print straight over it.

VP-ZAS11: 7.5″ x 11″ (9 x 30 cm)

VP-ZAS16: 7.5″ x 16″ (9 x 40 cm)

PALLET ADAPTER – used to replace your standard multi-knob pallet arms with a single corner clamp Pallet Arm Adapter. Use the Adapter Plate with Vastex pallets and your original stock arm.

VPA-2.5X1.5 Works with Hopkins, Workhorse, Printa, and any other press that uses a Rotor Arm measuring. 2.5″ x 1.5″ (6.35 x 3.81cm).

PALLET ARM

V1-ARM

SQUEEGEE REST – clamp the squeegee rest to screen rails at any point.

VN-WT2 (Set)

PAN AND WHEEL SETS

WS-V1 – add mobility to your printing press. The drop down wheel set will raise  your carousel by ¾” off the floor.

Service Pan and Wheel Set

V1SP-WS – get wheels plus a service pan to utilise as desired.

UNDER BRIM VACUUM PALLET

VAC-J-BRIM – enables printing under two flat brim hats at once when used with your shop vac.

UNIVERSAL PALLET MOUNT

V1P-DIY – bracket for DIY Pallets. p/n: 05-15-037-0

HAT PRINTING PACKAGE

If you need to print hats occasionally or all the time, our hat printing package makes life easier. There are three styles to choose from:

VP-H1 5.13″ x 3″ (13 x 7.6 cm)

VP-H2 4.88″ x 3″ (12.4 x 7.6 cm)

VP-H3 3.56″ x 2.5″ (9 x 6.4 cm)

Package includes:

(1) Hat pallet

(1) Screen arm extension

(1) Hat screen (9″ x 12″ w/ 110 mesh)

(1) Hat pallet arm attachment with spring-loaded hold-down

Contact Leapfrog Machinery for pricing and availability of the Vastex Pallets.

The Vastex V-1000 Carousel is available in a 4 Colour, 4 Station up to 8 Colour, 8 Station setup.
