Offering a medium sized DTG compatible tunnel dryer ideal for curing ink jet, water-based and discharge inks, as well as DTG-digital inks.
The LittleRed X2D offers an unbeatable value for smaller shops.
Available in two sizes:

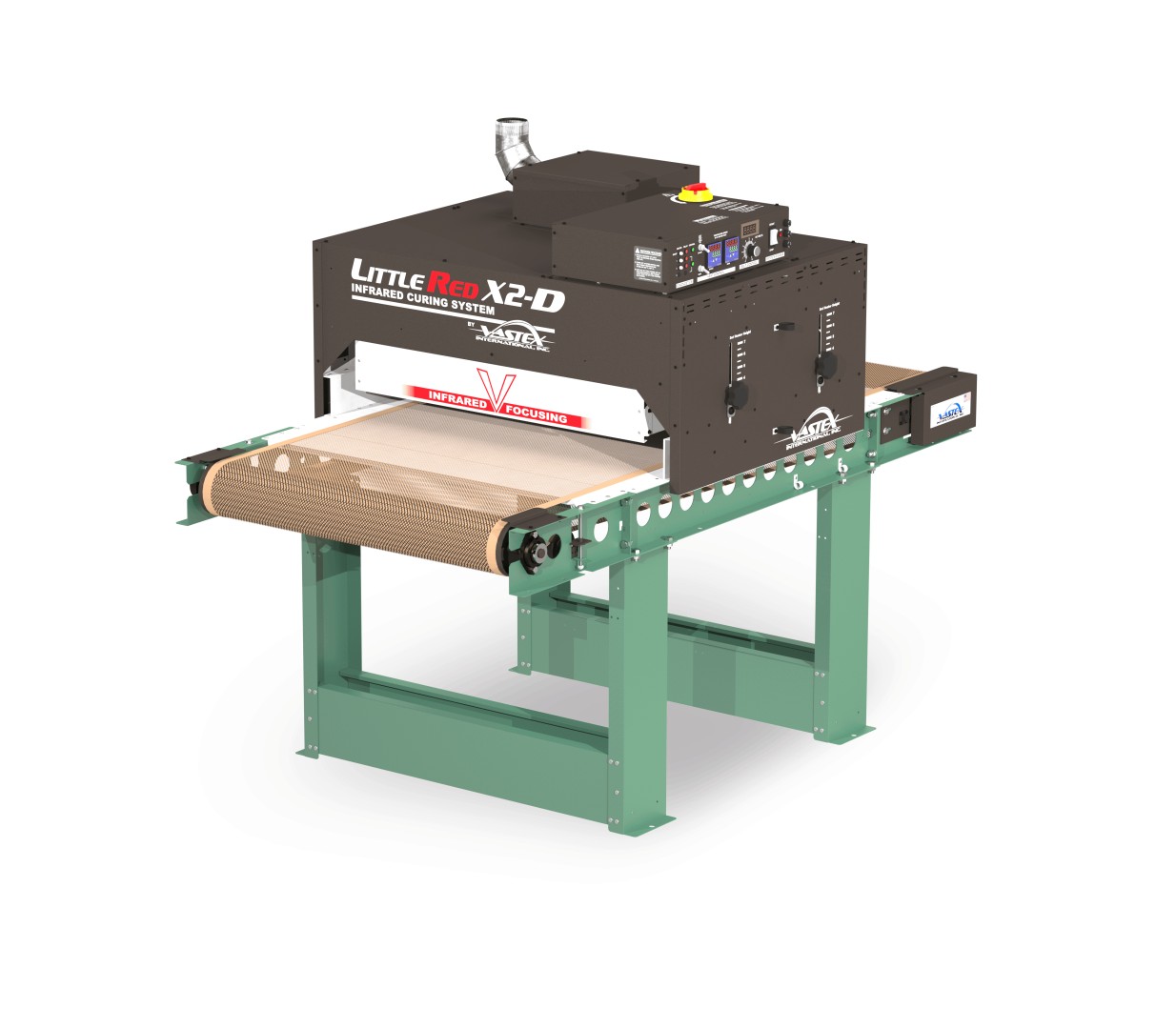

LittleRed X2D-30 (pictured): has a 76cm (30 in.) wide belt with two 61cm (24 in.) wide infrared heaters giving a total of 6300W so it can operate on Single Phase, 32AMPs.
Cure Rates:
- Up to 240+ garments per hour with plastisol inks,
- Up to 122+ garments per hour with water-based inks, and
- Up to 34 garments per hour with DTG/digital white ink at 3 minutes dwell time
LittleRed X2D-54: has a 137cm (54 in.) wide belt with two 122cm (48 in.) wide infrared heaters, giving a total of 12,600W, operating on Three Phase, 20AMP.
Cure Rates:
- It can cure 480+ garments per hour with plastisol ink,
- 180+ with water-based ink, and
- Up to 52 garments per hour with DTG/digital white ink at 3.5 minutes dwell time.
Each LittleRed X2D features:
- A high powered pre-heating zone to quickly bring ink temperatures to over 149°C (300°F)
- Two closely spaced, height adjustable infrared heaters and dual zone heat controls for consistent temperature.
- Rapid preheating maximizes the dwell time for each kind of ink, allowing increased conveyor belt speeds and dryer output.
- A powered exhaust system to rapidly remove moisture and air contaminates from the heating chamber, as well as to cool the skin and controls.
- The conveyor length is 168cm (66 in.) with a low friction belt aligner and belt speed controls to precisely set dwell times from 35 seconds up to four minutes.
- An industry leading 15-year warranty on the heaters.
- Closely spaced coils provide high-density, medium-wavelength infrared heat for maximum cure speed without cold spots or under curing associated with conventional units.
A great benefit with the LittleRed Tunnel Dryers is that all models can be expanded by adding heating chambers and conveyor belt lengths, allowing or future expansion as your business grows.
Contact Leapfrog Machinery on (0)2 9482 4999 to discuss which Tunnel Dryer would be best for your business.
