The Anatol VOLT is the only professional-grade, electric automatic screen printing press in the world.

Maximise the quality of your prints, Minimise the operating costs of your business and Increase your output with the Volt Auto Screen Printing Press.

Volt gives you speed, power and reliability without any issues that can be caused by a compressor, chiller and other pneumatic components.

View the Anatol Volt in action:

Using a reliable servo-driven indexer with servo lift, the Volt is designed to ensure years of reliable service. No longer will you need to worry about downtime caused by leaks in tubing, build-up of dirt and moisture. The all-electric automatic screen printing machine is revolutionizing screen printing; enabling small scale manual operations to upgrade to automatic screen printing machines.

Four Available Models of the Volt:

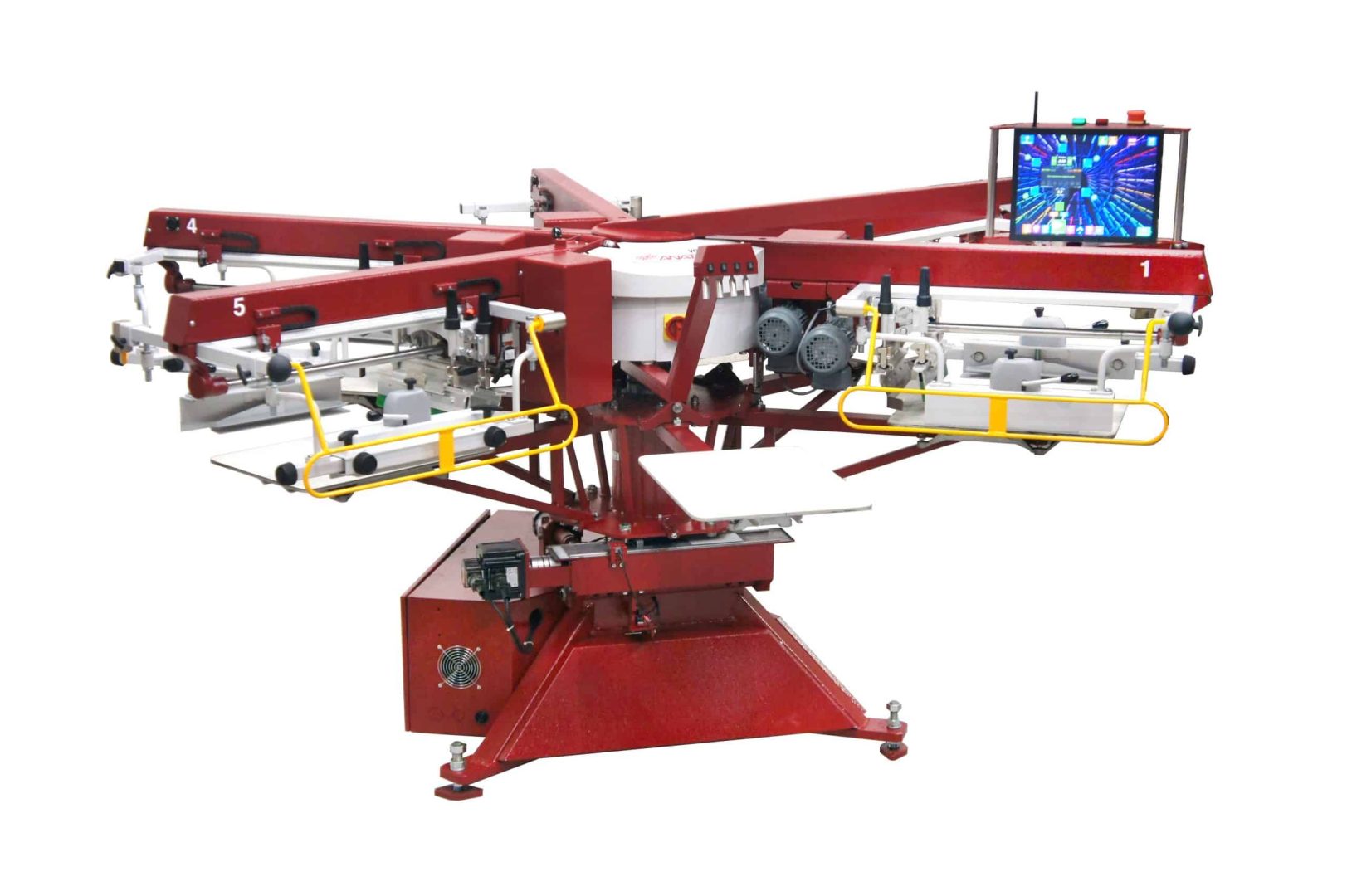

VOLT S

Max Print Area: 38.1 x 40.6cm (15 x 16”)
Max Screen Size: 54 x 71cm (21 x 28”)
Std. Pallet Size: 41 x 56cm (16 x 22”)
Customise to your ideal settings with configurations of: 6 stations/4 colors up to 12 stations/11 colors.
Available in both Single and Three Phase Power

Specifications on the most common Volt S configurations:

Stations/Colours	Max Print Area	Max Screen Size	Std Pallet Size	Press Diameter	Electrical Requirements
8/6	38.1 x 40.6cm (15 x 16”)	54 x 71cm (21 x 28”)	41 x 56cm (16 x 22”)	3.1m	1 ph 208/230v, 50/60 Hz, 20A 3 ph 208/230v, 50/60 Hz, 13A
10/8	38.1 x 40.6cm (15 x 16”)	54 x 71cm (21 x 28”)	41 x 56cm (16 x 22”)	3.4m	1 ph 208/230v, 50/60 Hz, 31A 3 ph 208/230v, 50/60 Hz, 18A
12/10	38.1 x 40.6cm (15 x 16”)	54 x 71cm (21 x 28”)	41 x 56cm (16 x 22”)	3.78m	1 ph 208/230v, 50/60 Hz, 36A 3 ph 208/230v, 50/60 Hz, 20A

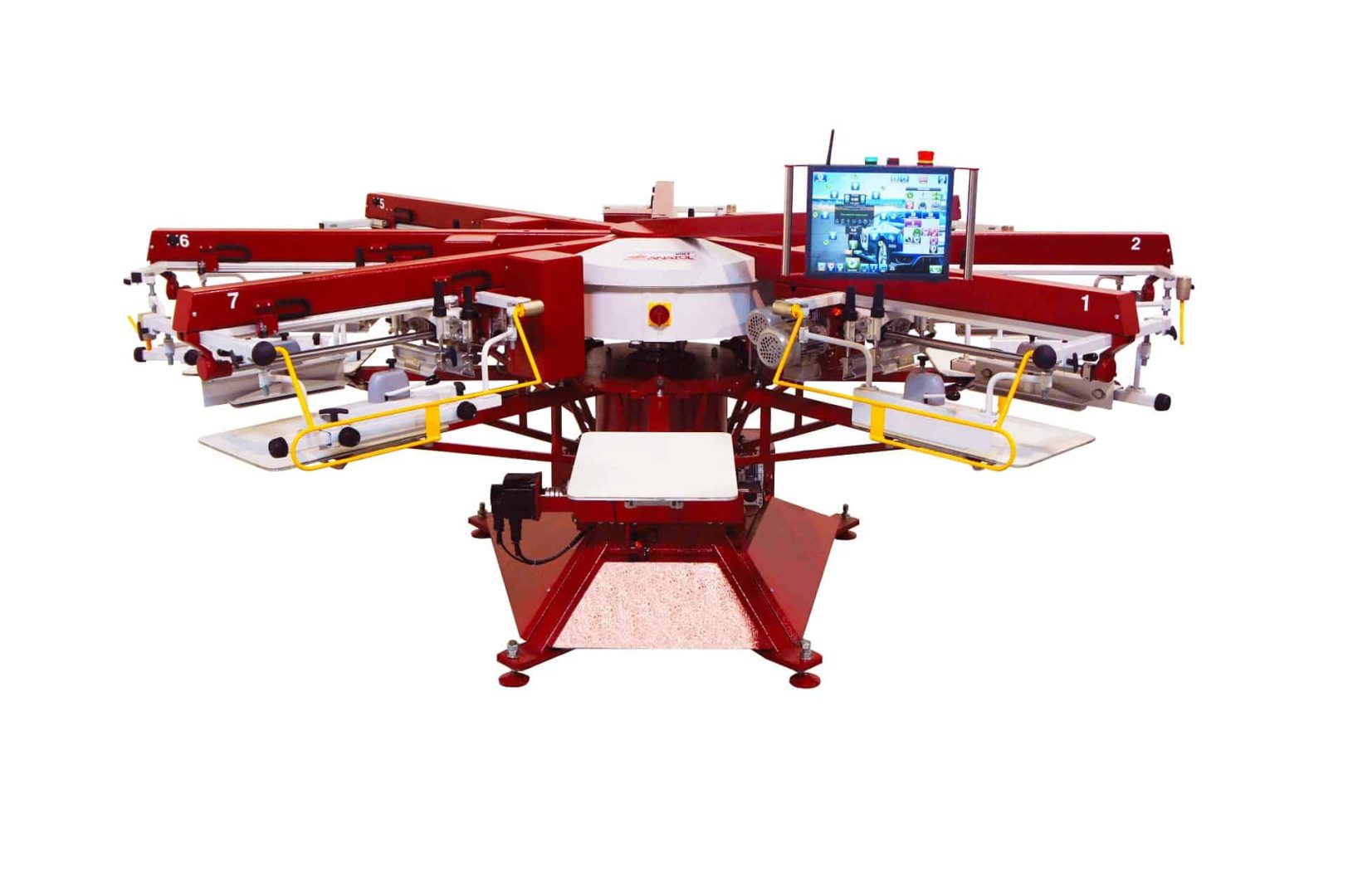

VOLT M

Max Print Area: 6 x 45.7cm (16 x 18”)
Max Screen Size: 58.4 x 84cm (23 x 33”)
Pallet Size: 41 x 56cm (16 x 22”)
Customise to your ideal settings with configurations of: 6 stations/4 colors up to 14 stations/12 colors.
Available in both Single and Three Phase Power

Specifications on the most common Volt M configurations:

Stations/Colours	Max Print Area	Max Screen Size	Std Pallet Size	Press Diameter	Electrical Requirements
8/6	40.6 x 45.7cm (16 x 18”)	59 x 84cm (23 x 33”)	41 x 56cm (16 x 22”)	3.08m	1 ph 208/230v, 50/60 Hz, 20A 3 ph 208/230v, 50/60 Hz, 13A
10/8	40.6 x 45.7cm (16 x 18”)	59 x 84cm (23 x 33”)	41 x 56cm (16 x 22”)	3.75m	1 ph 208/230v, 50/60 Hz, 31A 3 ph 208/230v, 50/60 Hz, 18A
12/10	40.6 x 45.7cm (16 x 18”)	59 x 84cm (23 x 33”)	41 x 56cm (16 x 22”)	4.14m	1 ph 208/230v, 50/60 Hz, 36A 3 ph 208/230v, 50/60 Hz, 20A

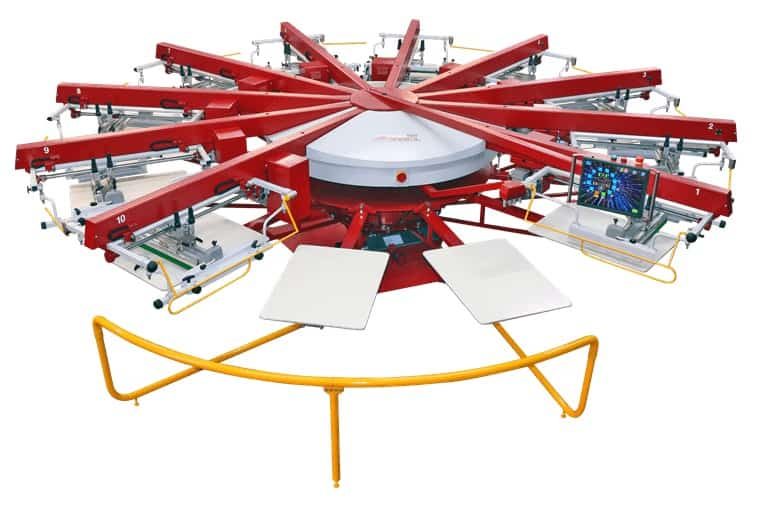

VOLT L

Max Print Area: 8 x 50.8cm (20 x 20”)
Max Screen Size: 66 x 91.4 (26 x 36”)
Pallet Size: 41 x 56cm (16 x 22”)
Customise to your ideal settings with configurations of: 6 stations/4 colors up to 20 stations/18 colors.
Available in both Single and Three Phase Power, depending on the configuration.

Specifications on the most common Volt L configurations:

Stations/Colours	Max Print Area	Max Screen Size	Std Pallet Size	Press Diameter	Electrical Requirements
8/6	50.8 x 50.8cm (20 x 20”)	66 x 91.4 (26 x 36”)	41 x 56cm (16 x 22”)	3.65m	1 ph 208/230v, 50/60 Hz, 20A 3 ph 208/230v, 50/60 Hz, 13A
10/8	50.8 x 50.8cm (20 x 20”)	66 x 91.4 (26 x 36”)	41 x 56cm (16 x 22”)	4.2m	1 ph 208/230v, 50/60 Hz, 31A 3 ph 208/230v, 50/60 Hz, 18A
12/10	50.8 x 50.8cm (20 x 20”)	66 x 91.4 (26 x 36”)	41 x 56cm (16 x 22”)	4.66m	1 ph 208/230v, 50/60 Hz, 36A 3 ph 208/230v, 50/60 Hz, 20A

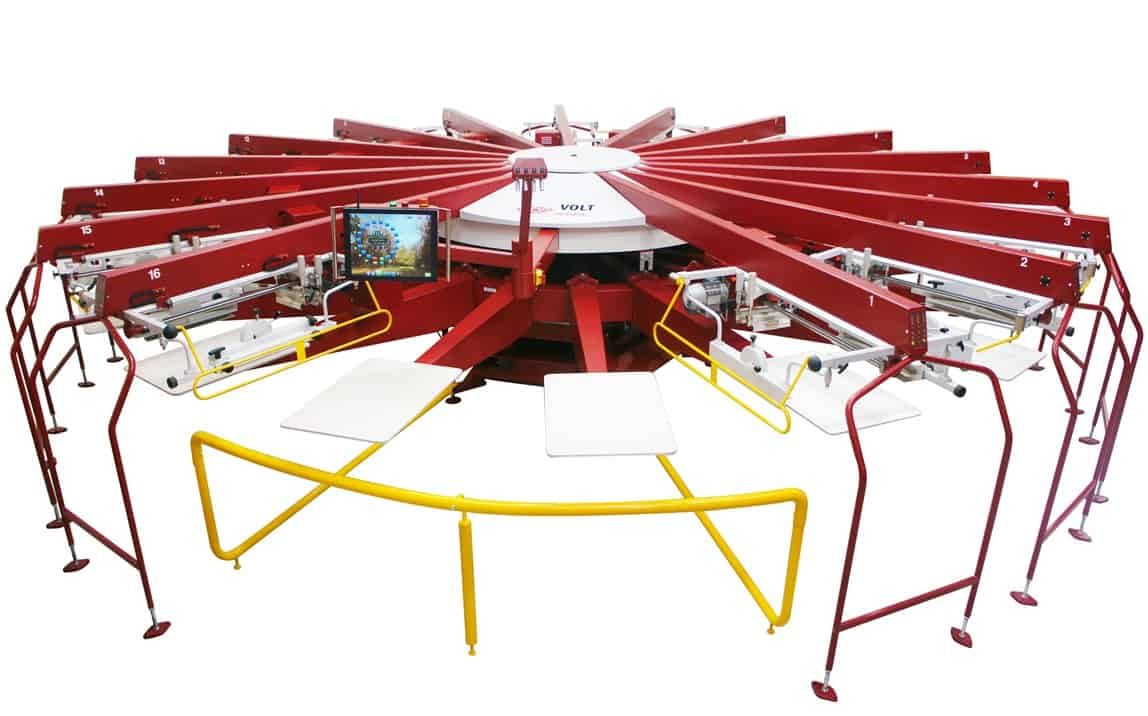

VOLT XL

Max Print Area: 8 x 71cm (20 x 28”)
Max Screen Size: 66 x 109.20 (26 x 43”)
Pallet Size: 41 x 56cm (16 x 22”)
Customise to your ideal settings with configurations of: 8 stations/6 colors up to 20 stations/18 colors.
Available in both Single and Three Phase Power, depending on the configuration.

Specifications on the most common Volt XL configurations:

Stations/Colours	Max Print Area	Max Screen Size	Std Pallet Size	Press Diameter	Electrical Requirements
8/6	50.8 x 71cm (20 x 28”)	66 x 109.20 (26 x 43”)	41 x 56cm (16 x 22”)	4m	1 ph 208/230v, 50/60 Hz, 20A 3 ph 208/230v, 50/60 Hz, 13A
10/8	50.8 x 71cm (20 x 28”)	66 x 109.20 (26 x 43”)	41 x 56cm (16 x 22”)	4.57m	1 ph 208/230v, 50/60 Hz, 31A 3 ph 208/230v, 50/60 Hz, 18A
12/10	50.8 x 71cm (20 x 28”)	66 x 109.20 (26 x 43”)	41 x 56cm (16 x 22”)	5.05m	1 ph 208/230v, 50/60 Hz, 36A 3 ph 208/230v, 50/60 Hz, 20A

View the Servo Print Heads Control System here:

Additional Pallet sizes available.
Enhance your business today with the Anatol Volt electric automatic Screen printing press. Contact Leapfrog Machinery on (0)2 9482 4999 for a quote and further information.
