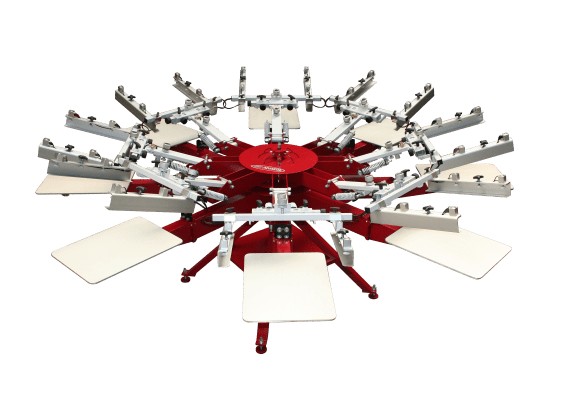

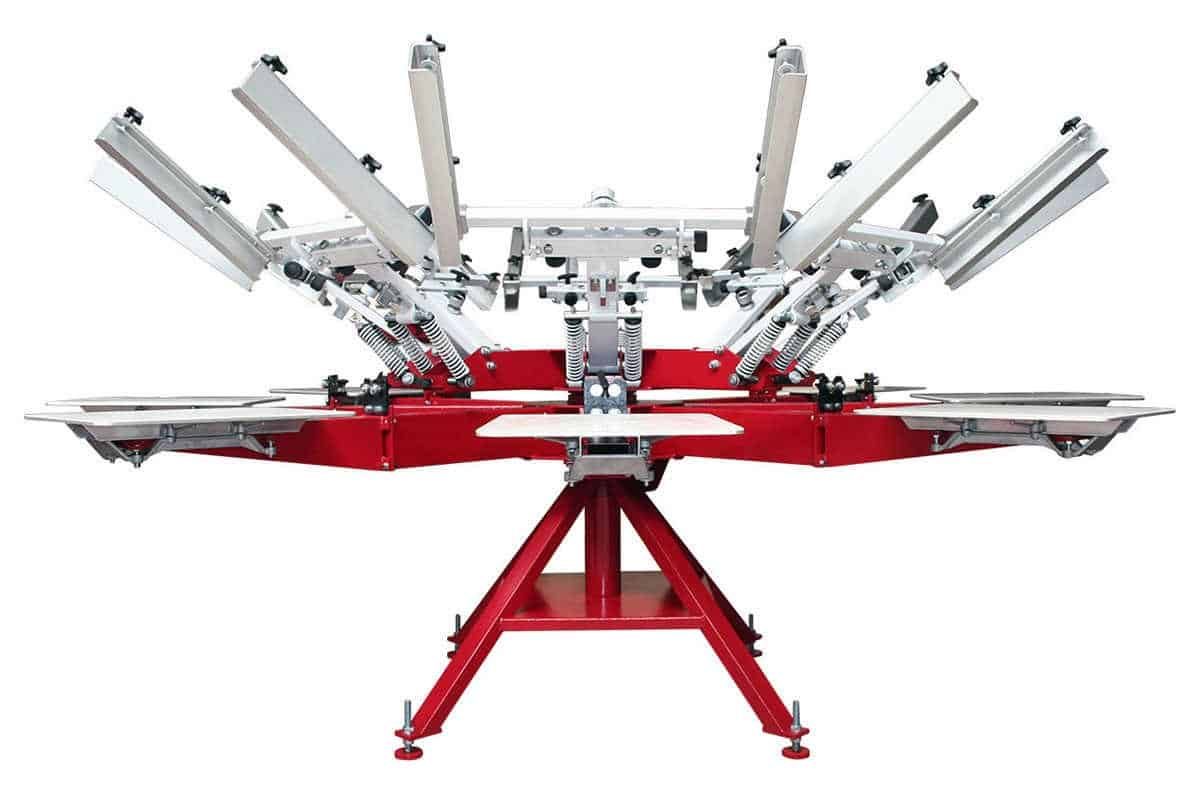

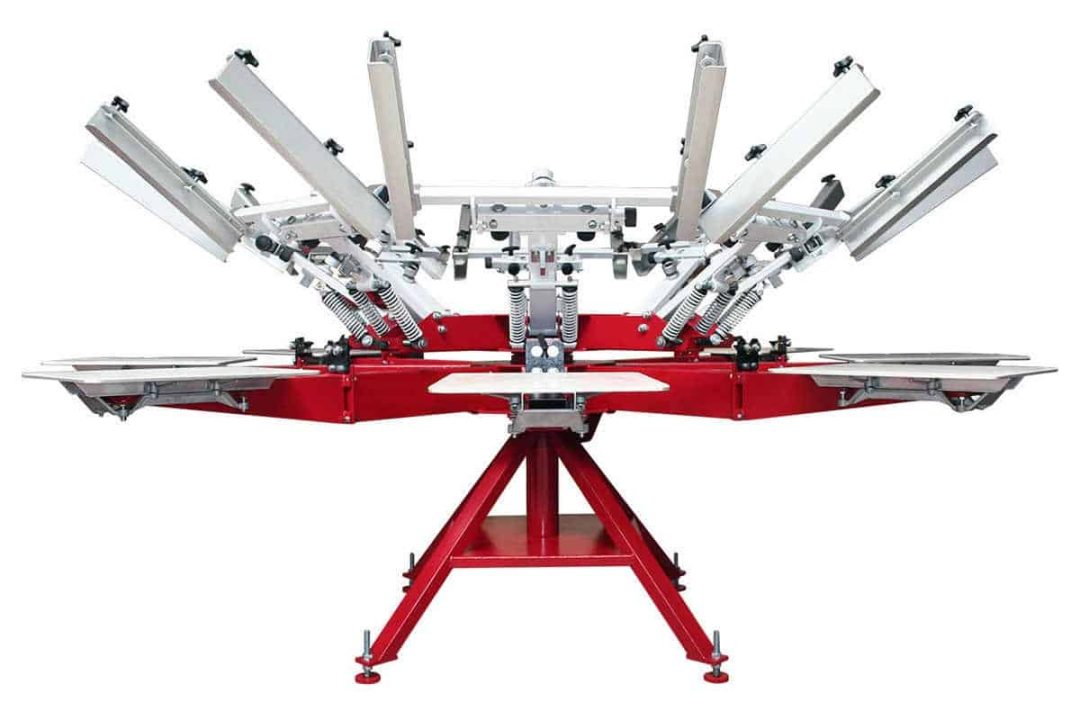

Anatol Thunder Industrial Screen Printing Press

Industrial-strength construction and innovative design combine to create the Anatol Thunder Manual Screen Printing Press.

Designed to handle high-demand printing, this durable manual screen printing press will help minimise wear and tear on the user. An excellent addition as a sampling or production press to your business, the Anatol Thunder has the same pallet arm and carousel design as the Anatol automatic t-shirt screen printing machines.

With a dual bearing system to provide easy movement throughout the day, the Anatol Thunder is available in configurations to suit all printing shops; from 4 Colour, 4 Station to 12 Colour, 12 Stations. The Thunder can take a Maximum Screen Size of 66 x 91cm (26″ x 36″) with a Maximum Print Area of 53 x 71cm (21″ x 28″).

With ease of use in mind, the Thunder is designed for 100% tool-less setups and operation, you can adjust off-contact distance, screen angle, micro-registration, print head spring tension and more with no tools required!

Made from a sturdy heavy duty steel frame, the double-bearing registration locks ensure top print quality with multi-colour jobs while the upper and lower column bearings provide smooth, quick operation.

Key features of the Anatol Manual Screen Printing Press:

Print Heads

• Gauged three-point micro-registration movement is adjustable on three points (front to back, side to side and rotational)
• Dual adjustable, guided spring tensioning system that provides a smooth lift and lower
• Side screen clamps keep screens in registration
• Off-contact and screen pitch adjustments on each print head
• All-Heads Down (on models 4s/4c, 6s/6c and 8s/8c) design lets you print any colour from any print head

Pallets

• 40 x 55cm (16″ x 22″) rubber-coated aluminium pallets included
• Choice of quick release or slide style pallets
• Available in both side clamp or back clamp versions
• Four-point pallet levelling system
• Adjustable side screen clamps
• Swivel feet on screen clamps to prevent movement while tightening

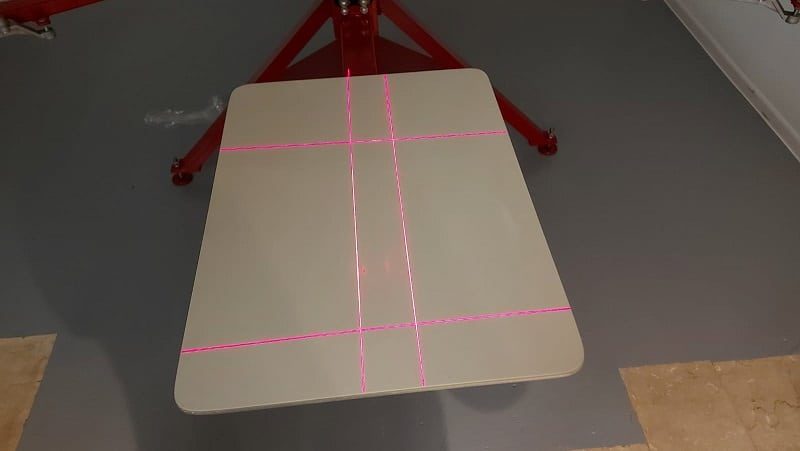

Laser Alignment System

• Laser alignment system for quick and easy apparel alignment
• Four independently-adjustable straight red lasers

Available exclusively in Australia through Leapfrog Machinery. Contact us for a quote on the Thunder Manual Screen Printing Press best suited for your business.
